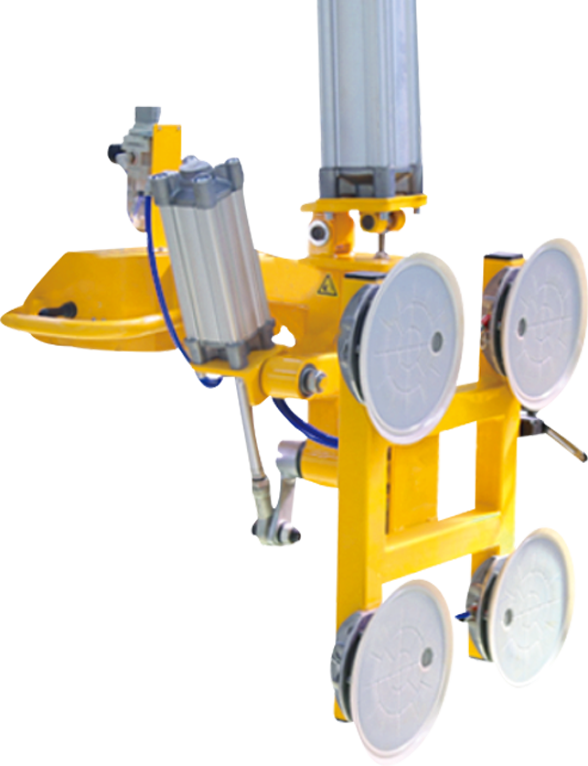

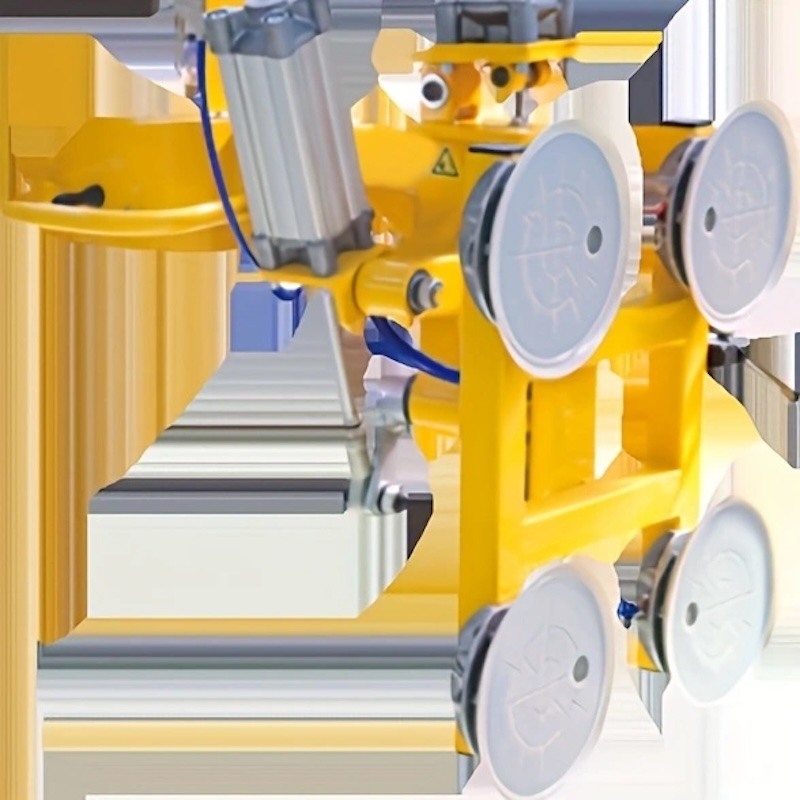

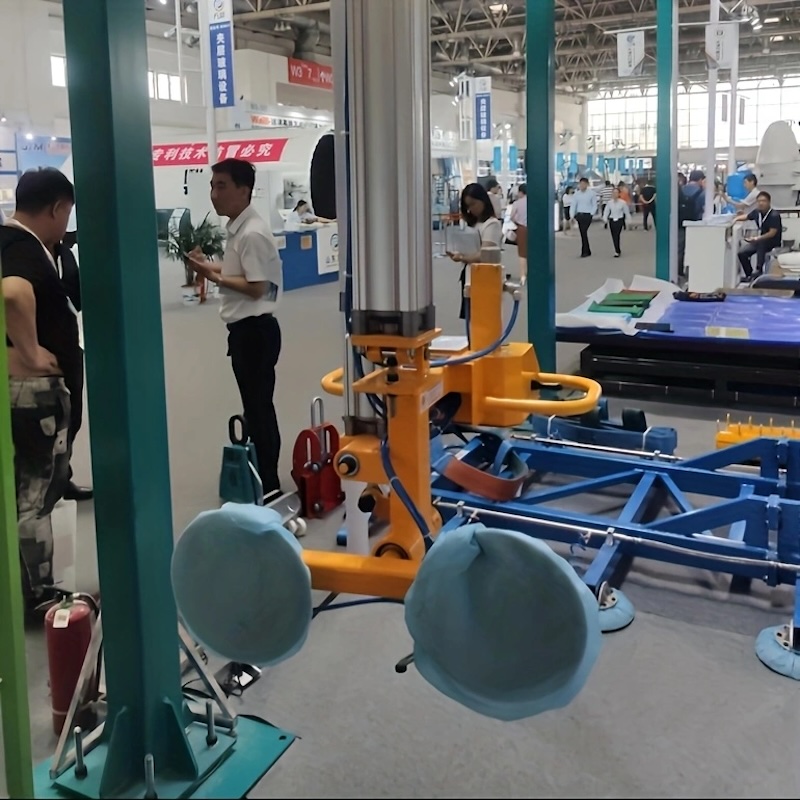

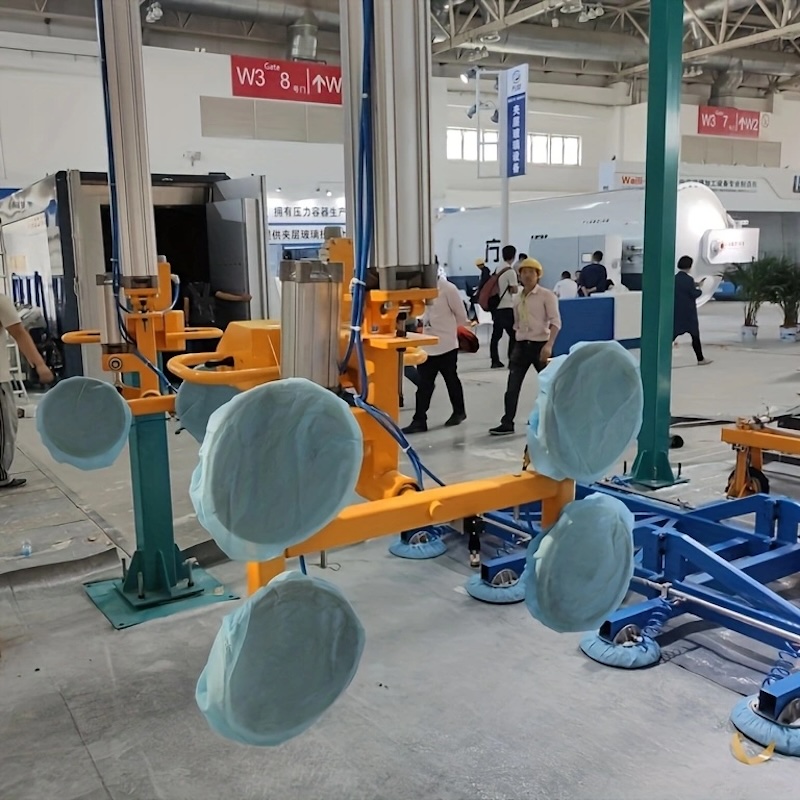

Pneumatic glass lifters with column have become widely used for lifting glass in all glass deep processing equipment.
Our vacuum glass lifters are used Thomas brand (the United States) as the vacuum pump and Japan SMC as the control system of the electrical component, the vacuum pads are imported and made by the special silicons, it features with no crack, low pressure alarm with acoustic and light, safety tanks ensure the lower keeping time of 15 minutes.
Features and Advantages
- High stability and simple operation. Using the principle of pneumatic assist, the workpiece handling process can be completed only by operating the control button.
- High efficiency and short handling cycle. When loading, the operator can control the movement of the workpiece in the space with a small force, and can stop at any position. The handling process is easy, fast and coherent.
- High safety performance, equipped with air-cut protection and automatic braking device. When the power supply suddenly disappears, the board will remain in the original position for a period of time without falling. It is convenient for the operator to remove the glass.
Basic Info
Model No. | MK-FXZ-6-500 | Cup Quantity | 4 |
Control Mode | Pneumatic | Muscle Size | Customized |
Certification | CE | Model No. | Rsy-Fxz-6-500 |
Application | Loading Glass | Lifting Height | 1200 |
Rotation | 90 Degree | Tilting | 90 Degree |
Color | Yellow Blue or Custom | CE Certification | Available |
Transport Package | Wood Box | Trademark | MK |
Origin | China | HS Code | 8428909090 |
Production Capacity | 2000 |
|
parameter
Rotating and turnover Vacuum lifter | |
Colume | |
Size : 4350*700mm | |
Glass Lifter |
|
Model: MK-XZFZ250,350,450 | Sucker NO.:2/4/6 |
Work range: Rotating and tilting 90° | Operating weight: 250/350/450 KG |
Vertical lifting range:1200mm | pneumatic component :SMC(Japan) |
Sucker material: white silica gel, suitable temperature: -40°to90°;leave no trace |
|
