This cutting-edge industrial equipment perfectly integrates the precision of laser technology with the efficiency of sandblasting. Equipped with an advanced laser control system, it utilizes a finely tuned laser beam to precisely regulate every detail of the sandblasting process—whether in terms of scope or depth—achieving unprecedented accuracy. This level of control ensures exceptional finesse and consistency, making each treatment as precise as a work of art.
The machine excels in material versatility, effortlessly handling metals, plastics, and glass. It also demonstrates remarkable capability in processing intricate shapes and micro-scale areas. Thanks to its flexibility and precision, the laser sandblasting machine has become an indispensable tool in industrial surface treatment. It meets a wide range of processing needs, from simple to highly complex, empowering engineers and designers to turn creativity into reality and produce both aesthetically pleasing and highly functional products.
Product Video
Product Features
- Adopt the latest generation of laser control software, which is simple to operate and powerful.
- The whole machine adopts Yadek linear guide rail, 1400MM length, 1.5 die rack
- The optical path components use high-speed, high-precision 12-spot galvanometer lens and telecentric quartz mirror to form the optical path part.
- The cooling part uses a dual-temperature dual-control chiller to control the temperature of the laser to ensure that the equipment can work well for a long time.
- The equipment adopts industrial aluminum profile gantry structure, high-strength welded frame, overall stress relief treatment, good rigidity and small deformation.
- The whole machine is welded steel structure, annealed and processed by 5-axis CNC milling to ensure the overall operation accuracy.
- The whole machine running parts are all processed by industrial aluminum profile 5-axis machining center to ensure the accuracy of the overall operation of the equipment.
- Equipped with high-precision servo motor drive and transmission mechanism, high precision, large transmission torque, small transmission error, and good dynamic characteristics.
- Adopt a new high peak fiber laser (Moke customized model), with a good beam, high power stability, low power consumption, and long life.
- The Z-axis worktable can be automatically raised and lowered to provide high-quality processing for plates of different thicknesses and materials, with few failure points and high stability.
PVC Tabletop
Model：
- Laser Sandblasting Machine-MK1124
- Laser Sandblasting Machine-MK1530
- Laser Sandblasting Machine-MK2030
- Laser Sandblasting Machine-MK2436
Customizable
Machine basic parameters | |
Mach ine mode l | MK1224/MK1530/MK2030/2436(50W/100W/140W/200W) |
Working mode |
Fiber Laser |
Working s ize | 10*10*3–1200*2400*50MM |
Floor space | 3100*2100*800MM |
Weight | 950KG |
Machine technical parameters | |
Total power | 4KW |
Laser | High Peak Fiber Laser |
Laser power |
140W/200W (Moke customized laser) |
Theoretical life of laser |
About 80,000 hours |
Optical maser wavelength | 1055-1070nm |
Engraving range | 60*60mm |
Mechanical repeatability | ≤±0.25mm |
Laser repetition accuracy | ≤±0.002mm |
Engraving line speed | ≤12000mm/s |
Motor system | CW laser system (Taiwan) |
Smoke exhaust system |
High pressure fan flue direct exhaust |
Work power | AC190-240V . 50- 60HZ |
Work Environment | +5—35℃ Relative humidity 30 – 60% |
| System and software | ||||
| Computer and system software | Microsoft Windows98 、2000 、XP 、win7 64bits contro1 system /win10 | |||
| Designs of software | Microsoft Windows 98 、2000 、XP 、win7 64bits contro1 system /w in 10 Auto CAD、 Corel DRAW 、type3 、wentai | |||
| Graphic format | EPS 、DXF 、PLT 、CDR 、AI 、AC6 | |||
| Laser technical parameters | ||||
| Modulation frequency range | 20Hz-2000Hz | |||
| Spot diameter | ±3.5mm | |||
| Power Stability(Average power) | ≤3%rms | |||
| Power stability (Peak power) | ≤5%rms | |||
| Optical quality | M2＜1.35 | |||
| Scanning head technical parameters | ||||
| Maximum line speed | 12000mm/s | |||
| Marking characters peed | 200 characters/second, Roman font, character height 1mm | |||
| Resolution | 5pm | |||
| Repeat marking accuracy | ±0.003mm | |||
| Min. marking width | 0.012mm | |||
| Min. character height | 0.15mm | |||
| Marking depth | ≤ 0-1mm | |||
| Marking range | 60*3000mm & Customizable | |||
| Working focus | 150±2mm (75*75MM) | |||
| Cooling equipment | Dual-control water chiller, water temperature 25-28 degrees | |||
| Maintenance | Maintenance-free | |||
| Mechanical part | |
| Processing parallelism | ≤±0.25mm |
| Processing speed | 0~10 meter/min |
| Scanning engraving speed | 0-12000mm/s |
| Laser | Fiber Laser |
| Oil supply | Manual oil injection system |
| Fixed device | optional vacuum suction device |
| Platform plate | high density PVC board.(flatness ≤± 0.40mm/ m). Durable to use |
| Rack/ guide rail | Square rail/helical gear adopts domesticwell-known brand motor, drive and guide rail, which ensures the stable performance of the machine, high precision and long service life |
| Vibration lens | Jinhaichuang fixed type |
| Software Section | |
| Professional laser control processing software | High-precision Taiwan professional laser control system, used under WINDOWS operation interface (convenient for drawing and operation) and compatible with drawing software such as Wentai Engraving, CorelDRAW, AUTO CAD, etc. |
| Scan path selection function | Ensure the best processing efficiency |
| Origin complement function | Secondary device origin |
| Operation input | Keyboard and mouse, Chinese dialogue interface |

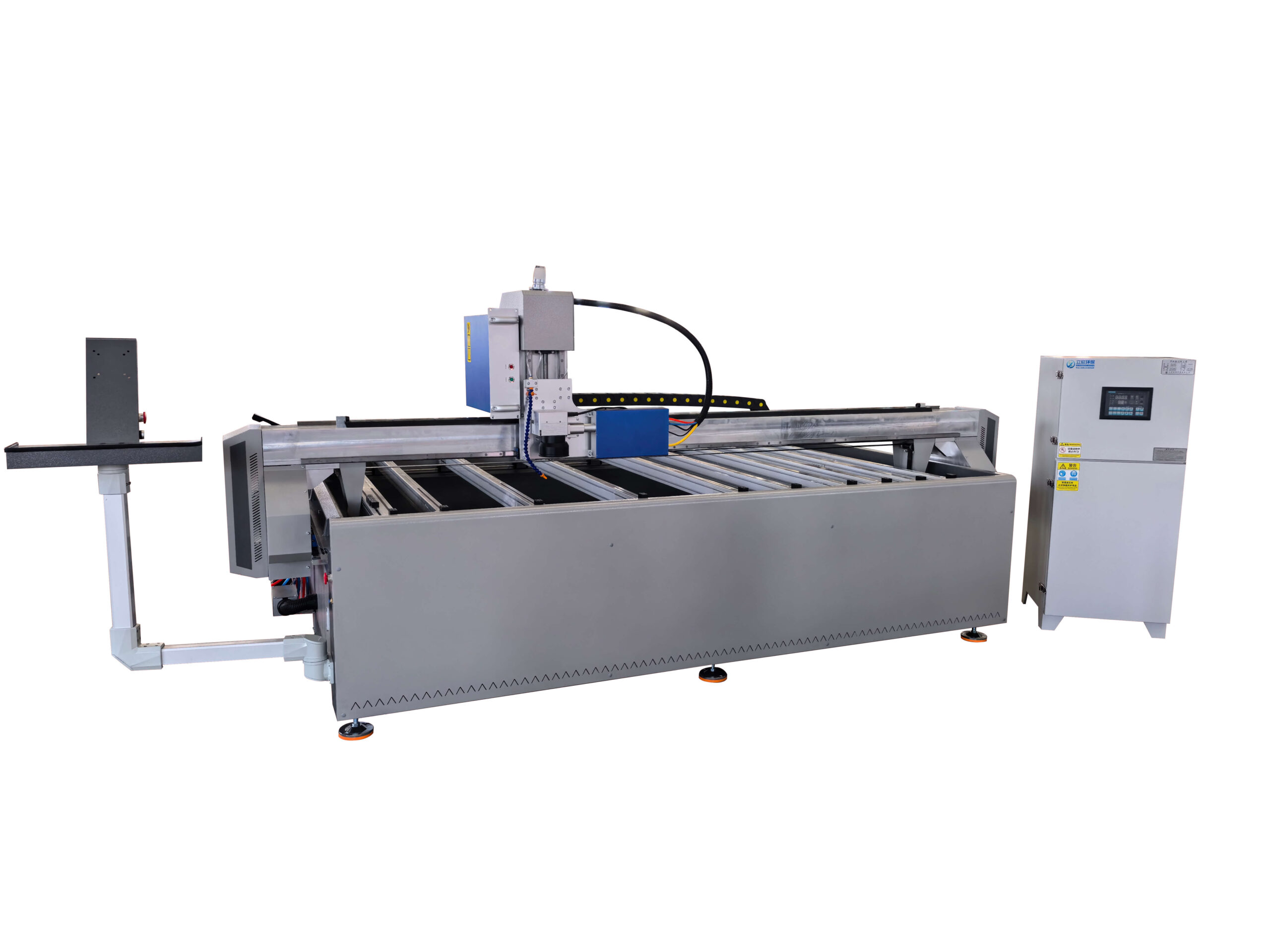

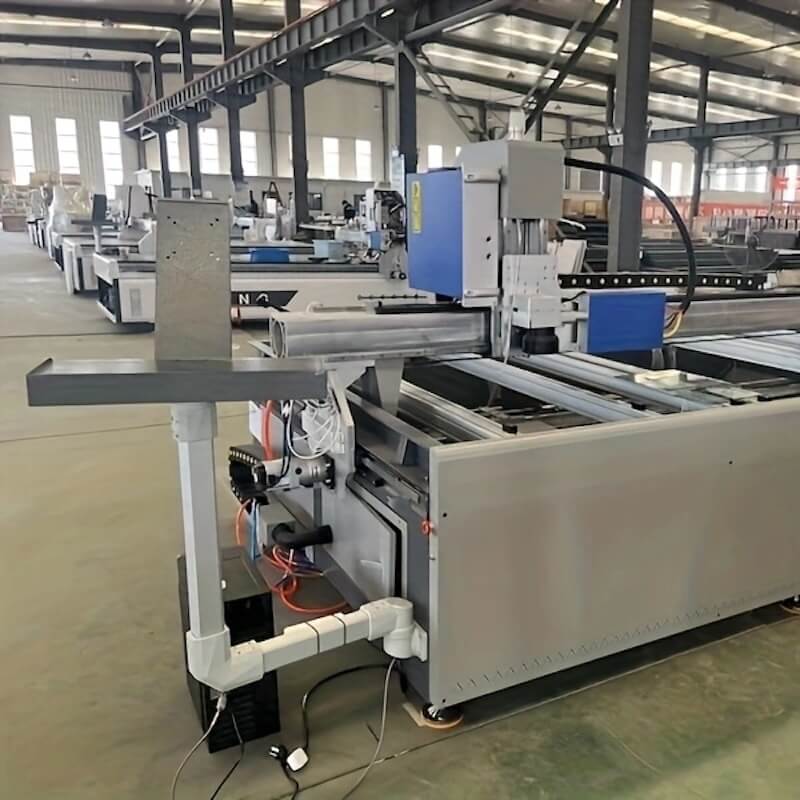

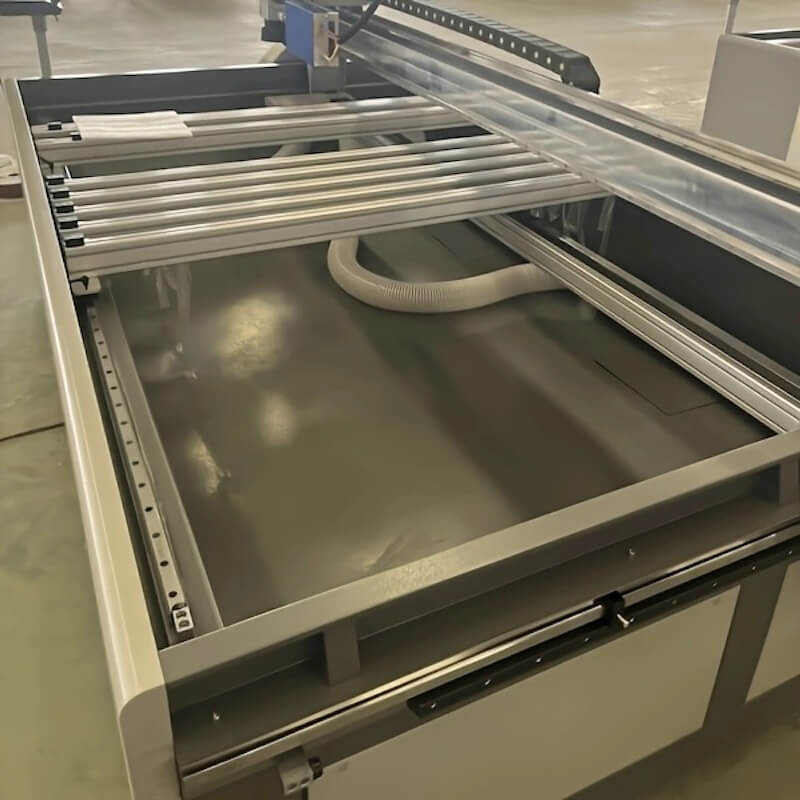

Hollow-cut tabletop
- a:Standard Hollow-cut Edition Tabletop
- b:Custom Hollow-cut Edition Tabletop
