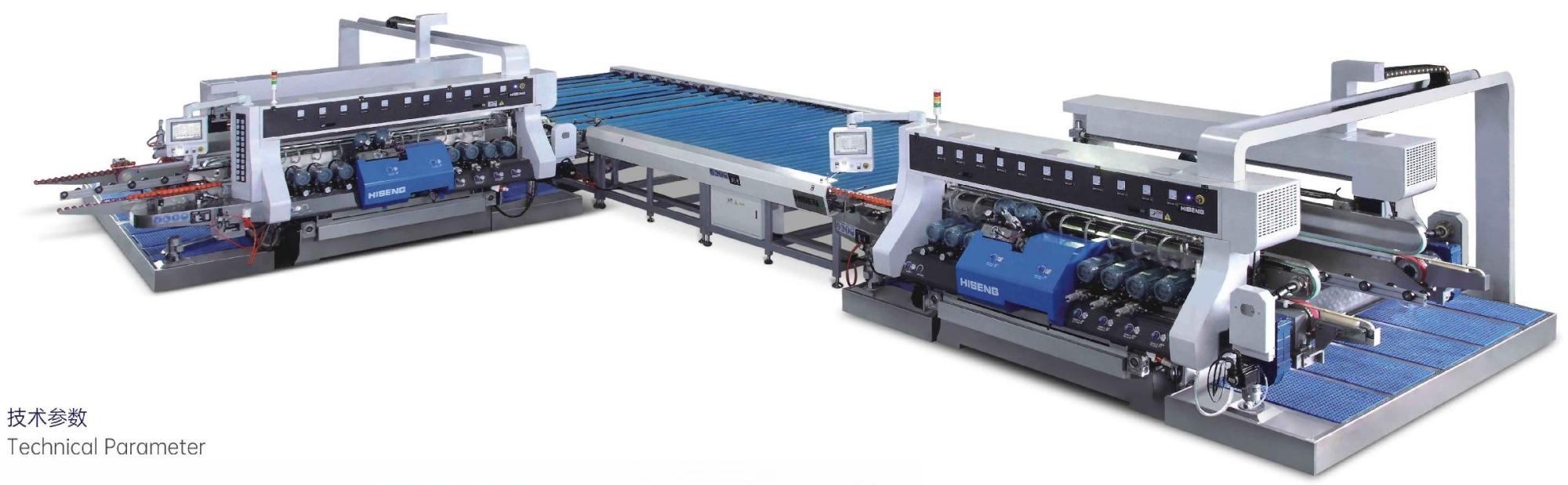

The line is widely used for big production volume requirement,such as solar glass,furniture glass,electrical appliance glass,automotive glass and etc.
Product Advantages
01Servo motor control transmission,Servo motor control width adjustment,Maximum edge grinding speed 12m/min;
02Cast rubber roller,high straightness,high speed and stable transmission,easy to maintain;
03It can match with ERP system、automatic checking table、connect with loader、unloader、washing machine to realize automatic production.
Edge grinding machine working video
Playlist
Technical Parameter
Thickness of glass | Glass Straight Double Line Double Round Edging Machine
3mm-19mm | Glass L Type Transfering Table √ 3-25mm | |
Minimum size of glass | 250mmx250mm | 300x300mm | |
Minimum size of glass | SYM-0815250mm-1500mm SYM-1215250mm-1500mm SYM-1220250mm-2000mm | SYM-1225250mmx2500mm | 2000x1500mm |
SYM-1245250mmx4500mm |
| ||
|
| ||
Transmission speed | 0.5-12m/min |
| 1m-50m/min |
Size change speed | 1-10m/min |
|
|
Glass Parallel Tolerance | ≤0.2mm |
| – |
Glass Diagonal Tolerance | ≤0.5mm |
|
|
Msx.grinding volunme | 3mm(单边Single side) |
| – |
Dubbing width | 0-4mm |
|
|
Air required Total Power Work Height | 0.6Mpa-0.8Mpa SYM 04:12KW SYM 08:23KW 900±20mm |
SYM12:32KW | 0.6Mpa-0.8Mpa 4KW 900±20mm |
