Product Category

Harp Rack

Features

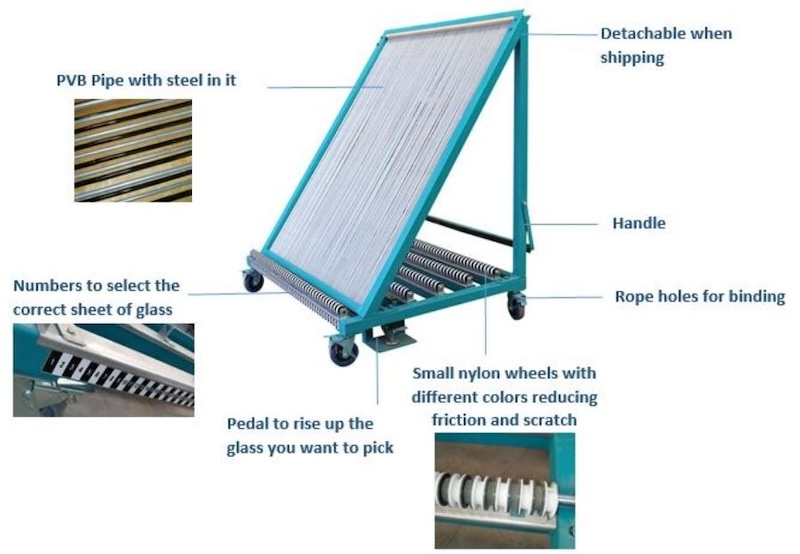

Glass Storage Racks, including L-frames, A-frames, raw glass storage racks, and cutting machine loading racks, are multifunctional storage solutions designed for both warehousing and transportation. They are the ideal choice for storing scattered cut pieces or finished insulating glass.

The rack angle is strictly maintained at 90 degrees, ensuring that freshly produced insulating glass will never slip or shift. These racks can be smoothly moved using pallet jacks or forklifts** and are also compatible with **overhead crane loading and unloading.

When idle or being transported empty, up to 10 racks can be stacked together, saving storage and shipping space while maximizing warehouse efficiency.

Product Description

This product is widely used in high-end glass handling and insulating glass pairing where high placement requirements are necessary. It ensures scratch-free single-pane glass placement and enables precise handling during insulating glass pairing, achieving the goals of labor, time, and space savings.



The rack features a glass securing mechanism to prevent sliding during transportation. Its modular design allows for easy disassembly and installation, significantly reducing transportation costs.

parameter

Model

MK-JPJ1-84

MK-JPJ2-40

MK-JPJ3-84

MK-JPJ4-40



Overall Appearance Size

1500*1200*1800

1000*1200*1800

1770*1200*1800

1090*1200*1800

Weight

220kg

165kg

220kg

165kg



Glass thickness

8mm

12mm

8mm

12mm



Number of glass

84 pieces

40 pieces

84 pieces

40 pieces



Capacity

1.5t

1.5t

1.5t

1.5t
