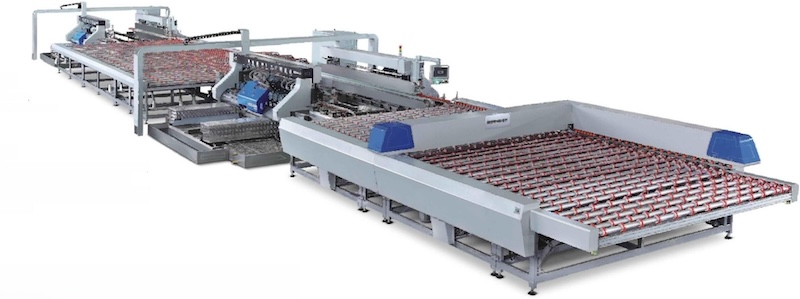

MK Glass Straight Line Double Edger Line is suitable for flat glass straight line grinding、rough grinding, fine grinding and polishing. It can install Low-E film removal wheel or corner cut wheel as option It is suitable for architectural glass,bathroom,furniture glass,laminated glass,walls,LOW-E glass,and home appliances glass industry glass processing, with stable and reliable performance.
Product Advantages
01Servo motor control transmission,Servo motor control width adjustment,Maximum edge grinding speed 8m/min;
02Easy to operation;
03Grinding motor is controlled by frequency conversion. When there is no glass in the machine,the motor will slow down automatically,which makes the whole line
more energy-saving;
04It can match with ERP system、connect with loader、 unloader、washing machine to realize automatic.
Edge grinding machine working video
Playlist
Technical Parameter
Thickness of glass | Glass Automatic Checking Table | Glass Straight Line Double Edging Machine | Glass L-Type Transfering Table | ||
3 25mm | 3-25mm | 3-12mm | |||
Processing size | 350m—3000m/min | MKD-2025350mm—2500mm | 350m-3000m/min | ||
MKD-2030350mm—3000mm | |||||
Transmission speed | 0.5m—30m/min | 1m—8m/min(标准)1m—10m/min(选配) | 0.5m—30m/min | ||
Size Change Speed | – | 1-10mm/min | – | ||
Glass Parallel Tolerance |
| ≤0.2mm/m |
| ||
Glass Diagonal Tolerance |
| ≤0.5mm/m | – | ||
Chamfer Tolerance |
| ≤0.2mm/m |
| ||
Chamfer width |
| 1-3mm |
| ||
Max Grinding on flat edge |
| 5mm |
| ||
Air required Total Power Work Height | 0.6Mpa-0.8Mpa 3.8KW 900±20mm | 0.6Mpa-0.8Mpa 53 KW 900±20mm | 0.6Mpa-0.8Mpa 2.2KW 900±20mm | ||
