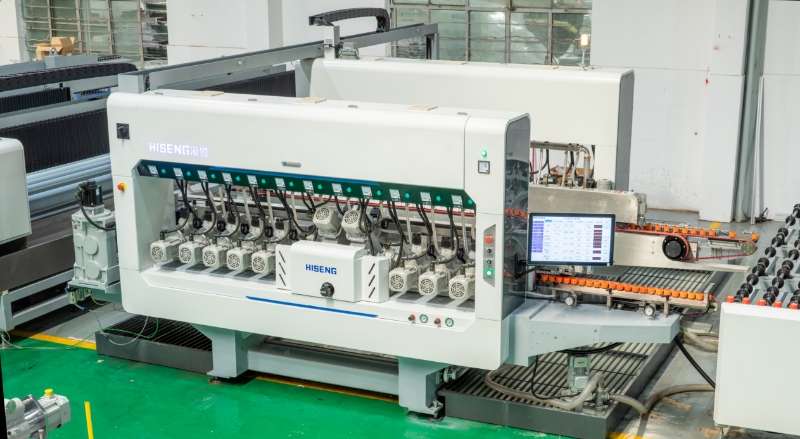

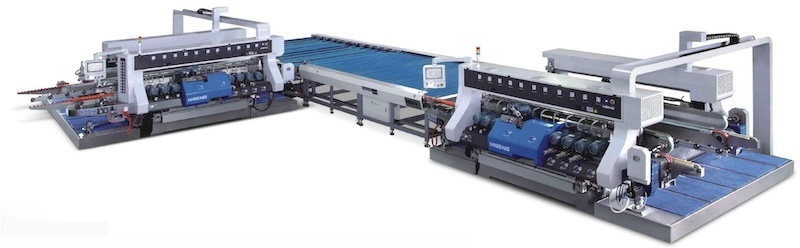

MK Glass Straight Line Double Edger Line is suitable for flat glass straight Iine grinding ,rough grinding ,line grinding and polishing. It can install Low-E film removal wheel or Corner cut wheel as option.It is suitable for architectural glass,bathroom furniture glass laminated glass, walls,LOW-E glass,and home appliances glass industry glass processing,with stable and reliable performance.

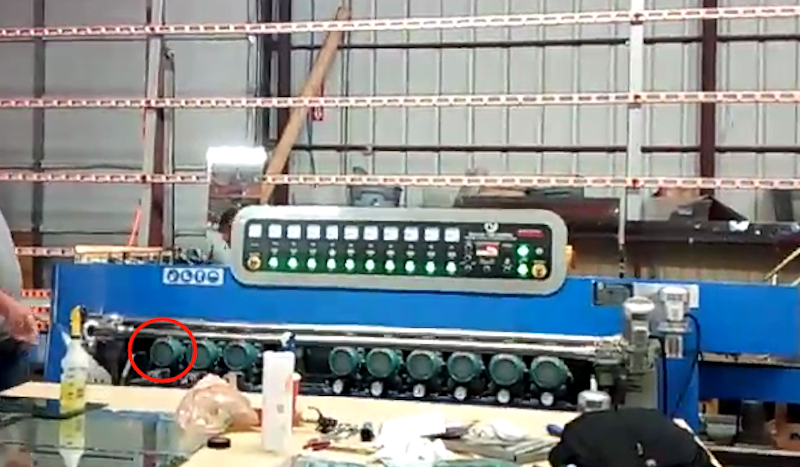

Edge grinding machine working video
Playlist
Technical Parameter
Thickness of glass | · | Glass Straight Line Double Edging Machine
3-25mm | Glass L Type Transfering Table
3-25mm |
Processing size |
| MKD-2025CM/HSD-2225350-2500mm MKD-2042CM/HSD-2242350-4200mm |
350mm—4200mm |
Transmission Speed |
| 0.5-15m/min(高速) | 1m—30m/min |
Size Change Speed |
| 1-10m/min |
|
Glass Parallel Tolerance |
| ≤0.2mm/m |
|
Glass Diagonal Tolerance |
| ≤0.5mm/m |
|
Chamfer Tolerance |
| ≤0.2mm/m |
|
Chamfer width |
| 1-3mm |
|
Max Grinding on flat edge |
| 5mm |
|
Air required Total Power Work Height | 0.6Mpa-0.8Mpa 53 KW 900±20mm | 0.6Mpa-0.8Mpa 4.5KW 900±20mm |
