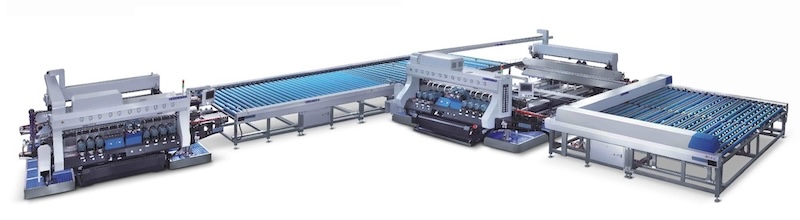

MK Glass Straight Line Double Edger Line is suitable for flat glass straight line grinding、rough grinding, fine grinding and polishing. It can install Low e film removal wheel or Corner cut wheel as option.It is suitable for architectural glass、 bathroom、furniture glass、laminated glass、walls、LOW-E glass、and home appliances glass industry glass processing, with stable and reliable performance.
Product Advantages
- 01Servo motor control transmission, Servo motor control width adjustment,Maximum edge grinding speed 20m/min;
- 02Grinding motor is controlled by frequency conversion.When there is no glass in the machine,the motor will slow down automatically,which makes the whole line more energy-saving;
- 03The upper pressing beam uses a spring sheet structure,which has advantages in processing thick plate glass and is not easy to deviate;
- 04It can match with ERP system、connect with loader、unloader、washing machine to realize automatic production.
Edge grinding machine working video
Playlist
Technical Parameter
Thickness of glass | Glass Automatic Checking Table Glass Straight Line Double Edging √ 3-25mm 3-25mm | MachineGlass L Type Transfering Table √ 3-25mm | |
Processing size | 350mm—4200mm | MKD-2225350mm-2500mm | 350mm—4200mm |
MKD-2242 350mm—4200mm | |||
Transmission speed | 2m—30m/min | 0.5-15m/min(高速) | 1m—30m/min |
Size Change Speed | 1-10m/min | ||
Glass Parallel Tolerance | – | ≤0.2mm/m | – |
Glass Diagonal Tolerance | ≤0.5mm/m | ||
Chamfer Tolerance | ≤0.2mm/m | – | |
Chamfer width | 1-3mm | – | |
Max Grinding on flat edge | 5mm | – | |
Air required Total Power Work Height | 0.6Mpa-0.8Mpa 3.5KW 900±20mm | 0.6Mpa-0.8Mpa 61.8 KW 900±20mm | 0.6Mpa-0.8Mpa 4.5KW 900±20mm |
