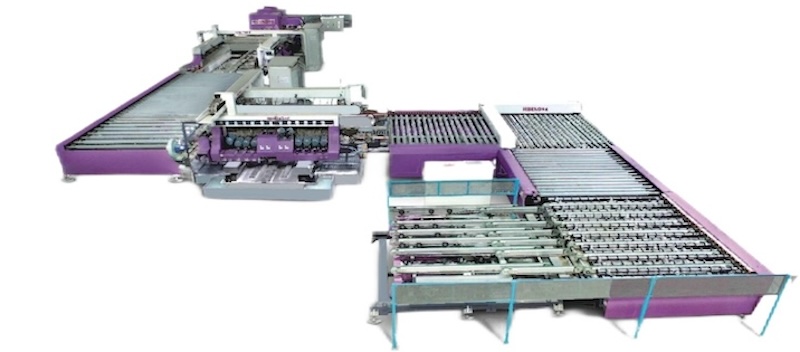

The production line utilizes dual servo systems for conveying, leveraging the high responsiveness and synchronization capabilities of the servos to ensure precise synchronization between the fixed and moving sides. The opening and closing mechanism is driven by high-precision servos, achieving a speed of up to 10 meters per minute while maintaining a repeatability accuracy of ±0.05 mm.
The motor, regulated by frequency conversion, enables the grinding wheel to reach a rotational speed of up to 4,500 rpm. This not only implements energy-saving control for the motor but also accelerates grinding speed and improves grinding quality. Additionally, the grinding wheel features servo-controlled automatic feed and automatic polishing compensation.
Product Advantages
01Automatic detection of glass size.Double edger automatic adjust length width and thickness accordingly.
02Servo motor control transmission,control width adjustment,Maximum edge grinding speed 20m/min;
03Specialied control motor siliding board,make sure precision of wheels adjustment.
04All motors are available to feed automatically,automatic loss compensation,
no need to adjust manually to make sure better grinding performance (optional)
Edge grinding machine working video
Playlist
parameter
Parameter |
| Automatic wheels Automatic pnumatic feeding system compensation system | |
Thickness of glass | Glass Automatic Checking Table 3-25mm | Glass Straight Line Double Edging Machine Glass L-Type Transfering Table 3-25mm 3-25mm | |
Processing size | 350mm—3000mm | HSD-2425350mm-2500mm HSD-2430350mm-3000mm | 350mm—3000mm |
Transmission speed | 2m—30m/min | 0.5-20m/min(高速) | 1m—30m/min |
Size Change Speed |
| 1-10m/min |
|
Glass Parallel Tolerance |
| ≤0.2mm/m |
|
Glass Diagonal Tolerance | – | ≤0.5mm/m | – |
Chamfer Tolerance | – | ≤0.2mm/m | – |
Chamfer width |
| 1-3mm |
|
Max Grinding on flat edge | – | 5mm | – |
