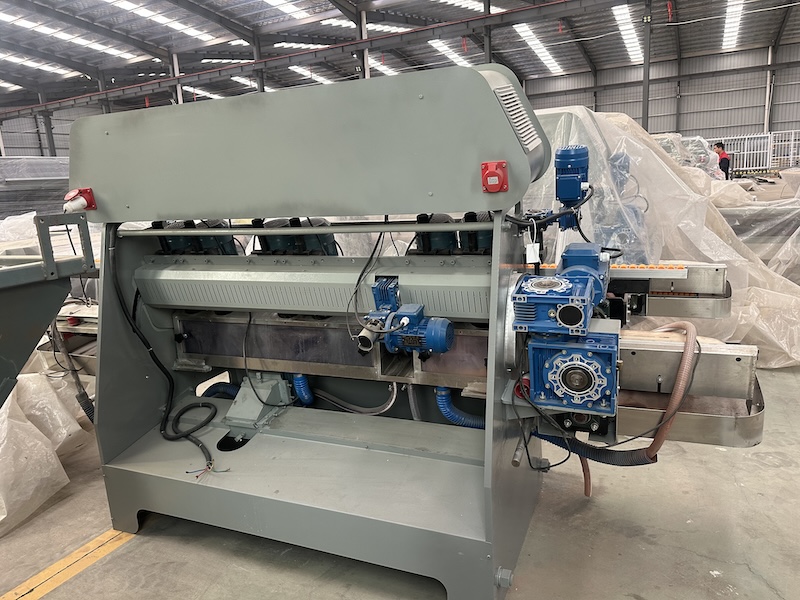

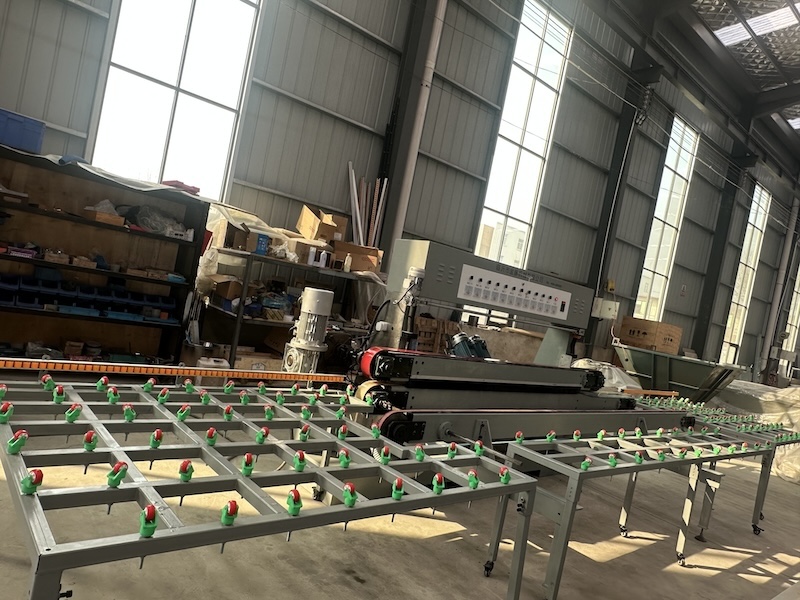

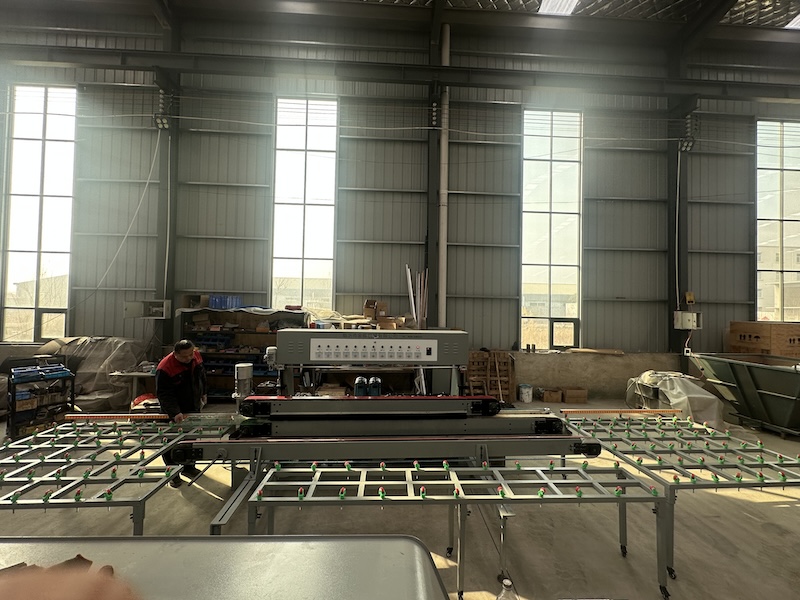

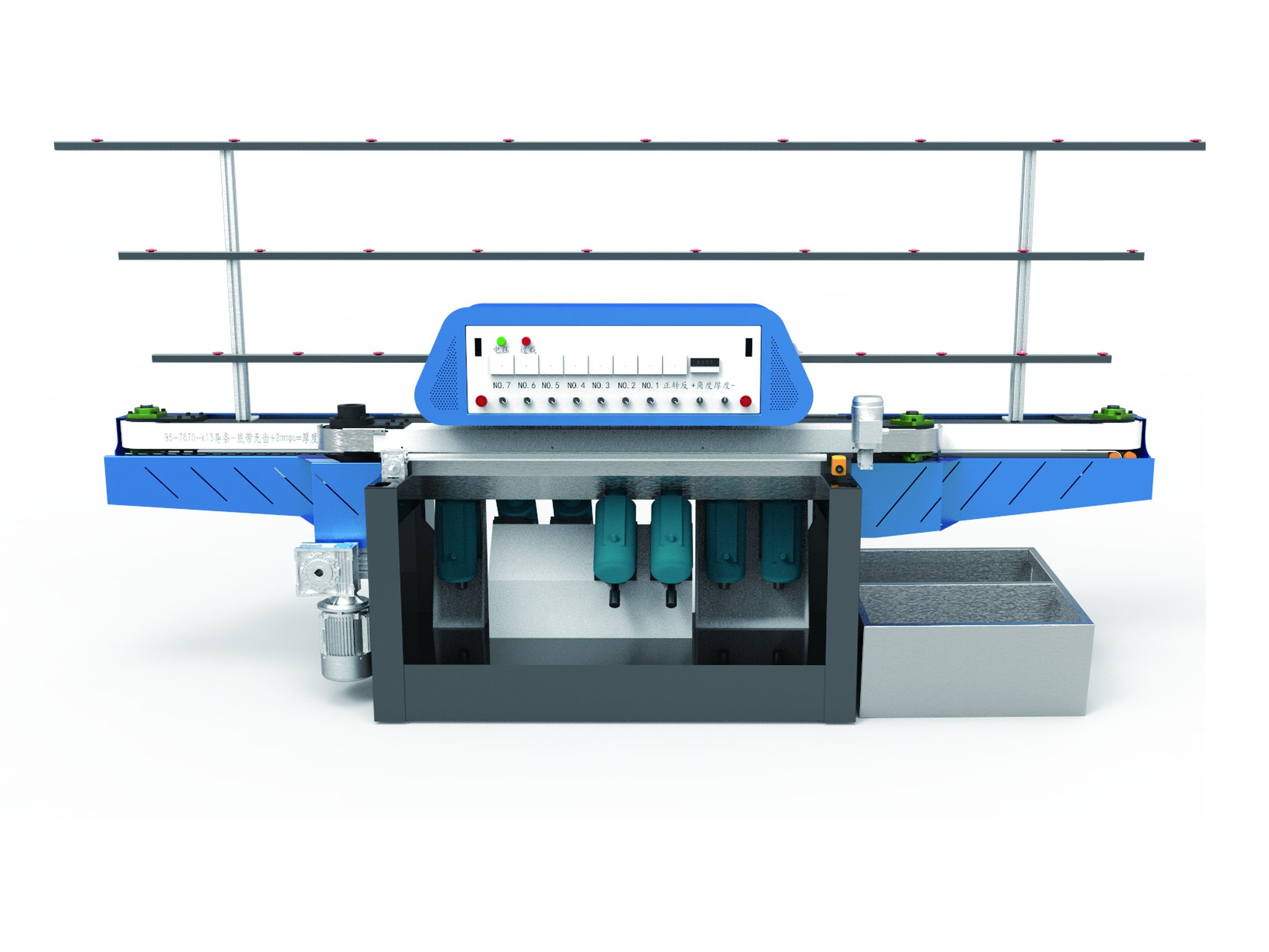

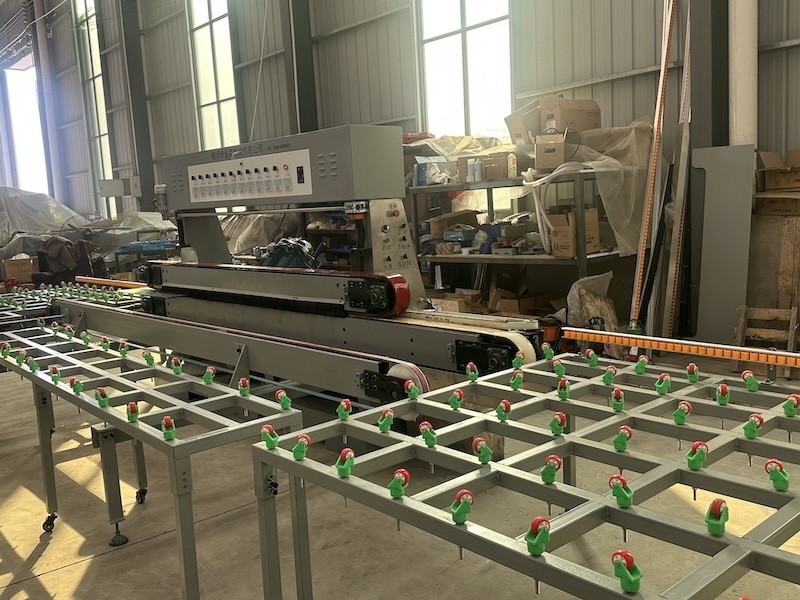

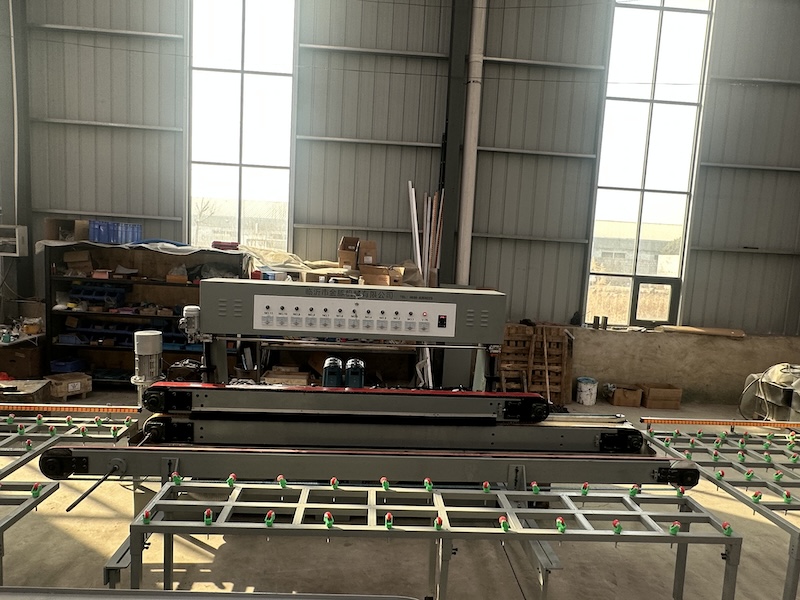

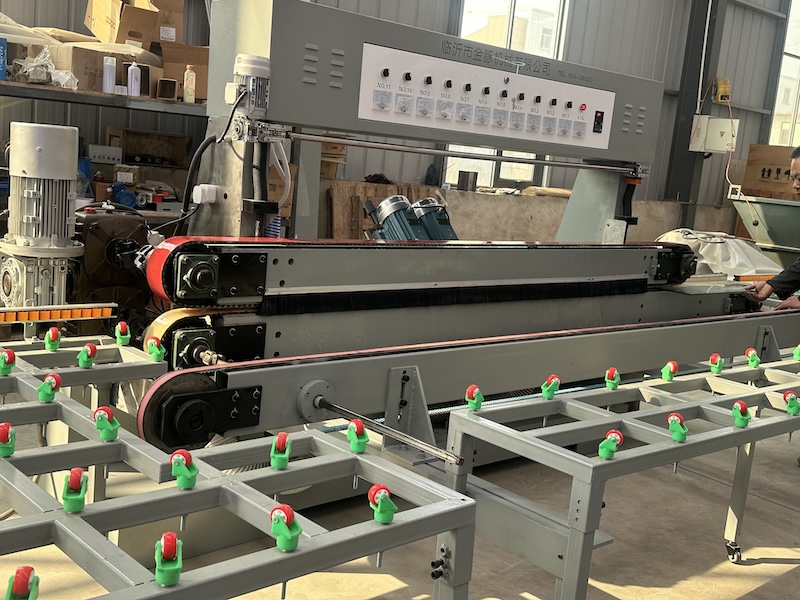

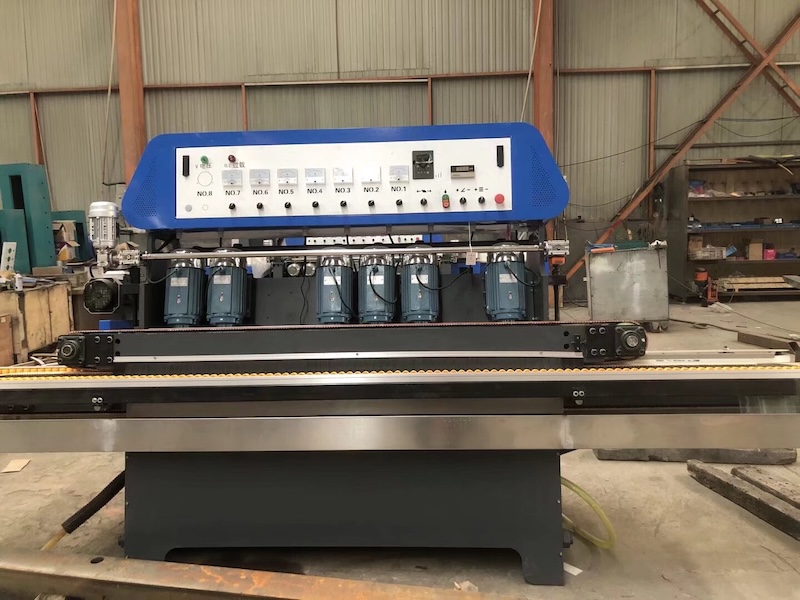

Glass straight edger is used to grind and polish glass with various size and thickness .Motors are fit on movable platform move together with front beam.Grinding and polishing of bevel and grinding of bottom edge can be completed in one time. There are two options manual and automatic operation. it can be controlled in PLC automatically with touch screen which can set parameters.The front pads can be added for fine grinding, two pneumatic polishing and one bottom grinding ,all can be completed in one procession. The speed of driving can be adjusted by step less reducer which can adjust at random during available speed range.The speed is adjustable with step less motor,high precision ,easy operation.
Parameter
Processing Thickness | 5-25 mm | Voltage | 380V |
Motors Quantity | 24 | Width Adjusting Speed | 1-15m/Min |
Min. Processing Size | 350X350mm | Air Compression | 20.6MPa20.6m3/Min |
Max. Processing Size | 4200X2500mm | Working Height | 900+20mm |
Glass Thickness | 3X30mm | Weight | 6100kg |
Transmission Speed | 1-20m/Min | Power | 68kw |
Max.Grinding Removal of Flat Edge | 3mm | Dimension(L*W*H) | 5000X6000X2000mm |
Max.Grinding Removal of Chamfer Edge | 3mm | Transport Package | Wrap Film or Wooden Case |
Specification | 5000*6000*2000mm | Origin | China |
Production Capacity | 10 Set/Sets Per Month |
|
