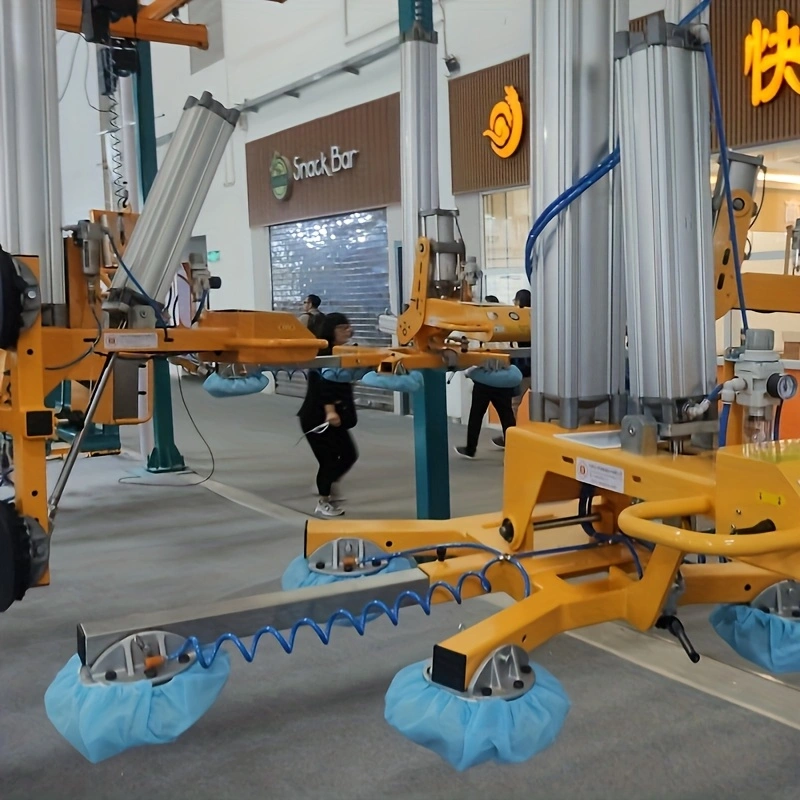

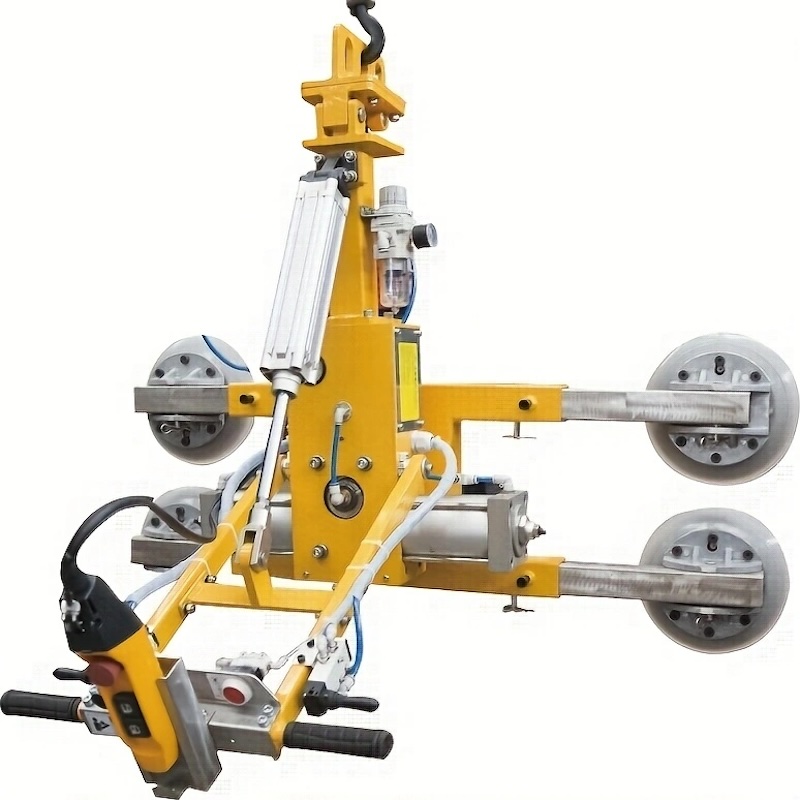

The Electrical Glass Lifter Sucker is well applied for handling and transporting glass in the production, processing and storage. Also it is mostly used for installing curtain wall, doors and windows.
With manual tilting 90° and rotating 360° movements, it can solve most of handling and lifting work for glass sheet.
This glass lifter is designed to use with the hoist equipment, like overhead cranes, lightweight crane, truck cranes, forklift and others.
Features
- Execution of tilting and rotating movements satisfy with most of handling requirement.
- Energy saving system increases vacuum sucking time and working safety.
- Vacuum gauge, battery indicator, vacuum reservoir make it safer.
A variety of suction frames are provided to match up with different glass dimensions and loads.
Basic Info
Cup Quantity | 8 | Electric Lifter | Yes |
Sucker Cup No. | 8 | Loading Capacity | 800kgs |
Sucker Material | Silica Gel | Function | Tilt & Rotate |
up and Down | Yes | Air Cylinder | No |
Battery Brand | Panasonic | Sucker Cup Diameter | 300mm |
Power-off Protection | Yes | Tilt | 360 Degree |
Rotate | 90 Degree | DC12V | Yes |
Adjustable | Yes | Transport Package | Wooden Box |
Specification | Customized | Trademark | MK |
Origin | China | Hs Code | 8486901000 |
Production Capacity | 20000pieces/Year |
|
Other series
1. Line-type Glass Lifter sucker is suitable for
Small sizes of glass in door and out door
installation(glasslengthof3.5metersandwide
1.5meters),which is designed lighter.It has
Rotation and tilting functions.
2. Double Clamp Electrical Lifter sucker
Is mainly for laminated glass carrying, the
Loading capacity could be 800kg or
1000kgs.

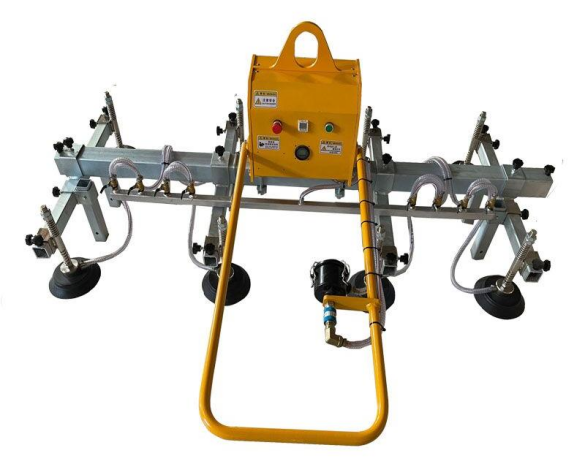

3. Vacuum Lifter Sucker For Metal Plate
Is suitable for loading and unloading various
Processing machines,such as laser cutting
machines, plasma cutting machines, and
Shearing machines.It is suitable for plates such
As aluminum plates,stainless steel plates,
Titanium plates and composite plates.The load
Ranges from 500kg to 2000kg.
