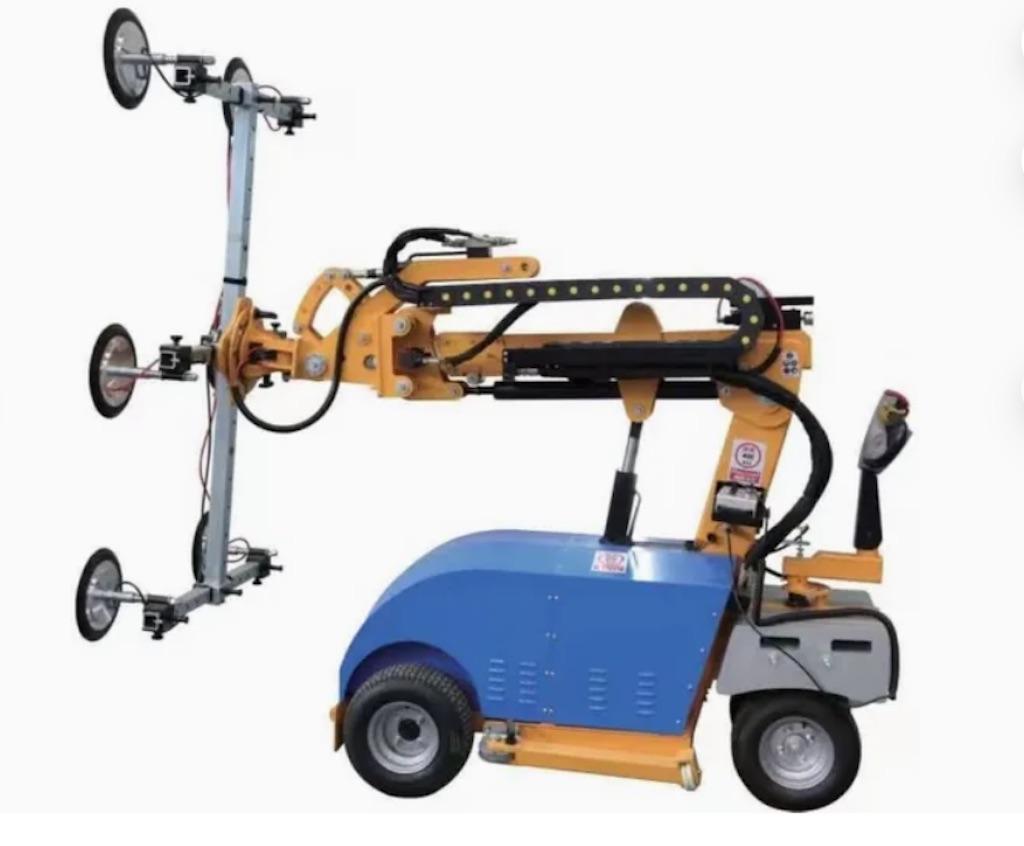

It adopts the principle of vacuum suction, which includes the functions of walking, lifting, tilting and rotation, which can easily realize the moving and handling of glass.
This machine is light and flexible in operation, and it is a new type of glass handling machinery with energy saving, high efficiency and environmental protection.
It is widely used in curtain wall glass installation,stone slab and plates transportation. In factories, warehouses, logistics centers and many other places, the handling of glass panels is safe and efficient, and fully reflects its excellent flexibility, stability and environmental protection performance
One person can operate, saving labor costs and improving engineering efficiency
Basic Info
Model No. | D400H-1 | Maximum Glass Size | 2000mmx4000mm |
Power Supply | Battery or Special Requirement | Safety Features | Emergency Stop Button,Overload Protection, Safety Sensors, Customized |
Warranty | 1 year | Lifting Height | 3.5m |
Speed | 5km/H | Lifting Capacity | 400kg or 800kg |
Weight | 1060kg | Power | 2.2kw |
Type | Glass Loading Machine | Structure | Vertical |
Condition | New | After-Sales Service | 1year |
Instruction | English Version | Brand | Dinganda or OEM/ODM |
Delivery | EXW 25 Days | Payment | T/T 50% Respectively |
Transport Package | Wooden Box | Specification | 2.4m*0.8m*1.9m |
Trademark | DINGANDA | Origin | Tianjin |
Production Capacity | 2000set/Year |
|
|
Details Images
Specifications | Simple version | |
Maximum working height | 3m | |
Loading Capacity | 400kg | |
Maximum glass size can working | 5*3m | |
Drive device | Empty driving speed | 0-4km/h |
Power | 0.8kw | |
Driving method | 24V back drive | |
Grade ability | 15% 13.5degree | |
Vacuum system | Vacuum suction cup sucking capacity | 400kg |
Cups qty | 6cups (300mm) | |
Vacuum pump | single system | |
Warming device | Buzzer alarm, digital display&mechanical pressure gauge | |
The frame control | Forearm extension distance | 600mm |
Tilting degree | (hydraulic) 0-135degrees | |
Rotating degree | (manual) unlimited | |
Horizontal movement distance | 50mm | |
Lateral torsion angle by manual | 90 degrees each side or locked each 45 degrees | |
Battery | Capacity | DC12V*2*100Ah |
Charging Voltage | AC110-220V | |
Vehicle endurance | 4-8h | |
Hydraulic oil tank capacity | 8L | |
Wire or remote control | Wire control | |
| ||
Self weight | 900kg | |
Size | Long wheel base | 1235mm |
Body length | 1642mm | |
Height | 1456mm | |
Extension height | 2819mm | |
Retract length | 2219mm | |
Tires | front tires13*5-6 solid rubber tires*2 | |
