Electrical Glass Lifter Sucker

Is the suction force of the electric suction cup strong enough? How to ensure safety?

For large glass or heavy objects, multiple suction cups can be used at the same time to enhance the suction effect and safety. They must be used reasonably within the suction cup’s load-bearing range. To ensure safety, a unified inspection is carried out before operation to see if the sealing ring is intact and the vacuum pump is stable. Some models are equipped with an automatic air replenishment system to monitor the vacuum degree in real time to prevent accidental detachment.

What surfaces are electric suction cups suitable for?

Electric suction cups are mainly used for smooth surfaces of objects, such as glass of different materials: tempered glass, vacuum glass, colored glass, etc. When in contact, the surface needs to be kept smooth and free of dirt, and the suction pressure is adjusted accordingly according to different products.

What is the battery life of the electric suction cup? Can it work for a long time?

Some electric suction cups can be connected to the factory power supply, and some electric suction cups use batteries. The battery life of electric suction cups depends on the specific model and usage, but it can usually support long-term work. Some electric suction cups can continuously adsorb 900 times or work for 2-3 hours after being fully charged. In order to extend battery life and equipment life, regular maintenance is recommended, such as cleaning the suction cup, checking the battery status, and avoiding long-term continuous operation.

What should I do if the suction cup suddenly loses pressure? Are there emergency measures?

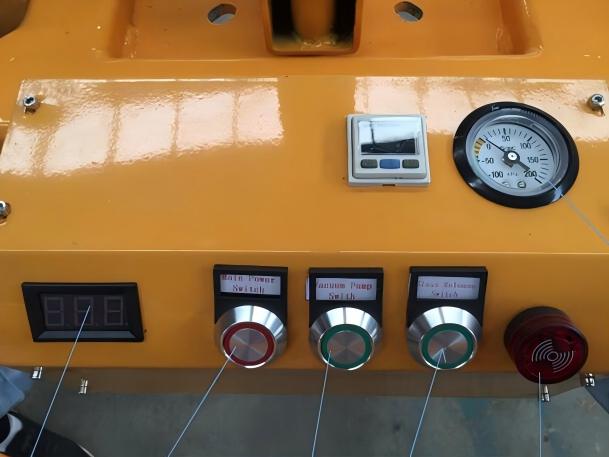

The suction cup is equipped with an emergency pause button and anti-pressure loss protection. If there is a loss of pressure, the suction cup should be stopped immediately, and the sealing ring and power supply should be checked. Some suction cup models will also emit an alarm sound and LED prompts.

What is the maximum load-bearing capacity of the electric suction cup?

According to the different weights of the glass, different numbers of suction cup devices can be placed, such as 400 kg, 600 kg, 800 kg, 1000 kg, etc., and customization is supported.
